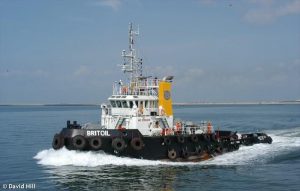

We can now offer an ex.Britoil vessel that is operating in the UAE. Well priced at only $1.35 mil for a quick sale! Under 500 GT!
Type: Anchor Handling Towing Vessel Class: American Bureau of Shipping, Notation ✠A1, Towing Vessel, AH, , ✠AMS Year Built: 2004 Flag: United Arab Emirates
MEASUREMENTS Length Overall 40.00 m Length BP 36.80 m Beam Moulded 11.40 m Depth Moulded 4.95 m Draft (Max) 4.40 m Deadweight 290.15 MT
TONNAGE GRT 497 T NRT 149 T
MANEUVERING & PROPULSION SYSTEM Main Engine: 2 x MAK 8M20 rated 2,100 BHP @ 1,000 rpm each Total HP 4,200 BHP Gearbox: 2 x WAF 2345 gearbox of 4.454 : 1 ratio Steering Gear: Electro-hydraulic, 6 T torque Propeller: 2 x FPP, bronze manganese propellers @ 2,900 mm (Ø) each in Kort Nozzle Bow Thruster: 1 x 350 BHP Bollard Pull: 42.1 T
ELECTRIC POWER GENERATION Main Generator: 3 x CAT 3408 DITA rated 300kW/ 380V/ 3Ph/ 50Hz
PERFORMANCE Max. Speed: Approx. 12.5 knots Endurance: Approx. 27 days
DECK Clear Deck Area: (16 m x 8 m) Approx. 128 m2 Deck Loading: 5 T/m2
ACCOMMODATION Berth / Cabin 4 x 2 men 1 x 4 men 1 x 6 men Total 18 men
Anchor Windlass 1 set 7.7 MT @ 14 m/min electro-hydraulic Anchor windlass, Brattvaag Anchor Chain 2 x 220 m x 28 mm (Ø), U2 steel stud link chain Anchor (Bow) 2 x 780 kg Stockless Anchor Tugger Winch 2 x 11 MT @ 23 m/min, Brattvaag Deck Crane 01 x DKT40, Dreggen, SWL: 2.6 MT @ 14 m reach
TOWING & ANCHOR HANDLING EQUIPMENT AH / Towing Winch 140 T Brake, 75 T Pull Hydraulic double drum, waterfall type, Brattvaag 75 T Pull @ 14 m/min 43 T Pull @ 22 m/min Drum Capacity 1,000 m x 52 mm (Ø) Storage Winch 2 x 9.2 T @ 26 m/min for 1,000 m x 52 mm (Ø) Shark Jaw 2 x Karm Fork 2 x Tow Pin Stern Roller 3.3 m x 1.77 m (Ø), SWL: 140 MT
MISCELLANEOUS Sewage Treatment 1 x 25 persons, Taiko Kikai SBT-25 Water Maker 01 x 5 MT/day
